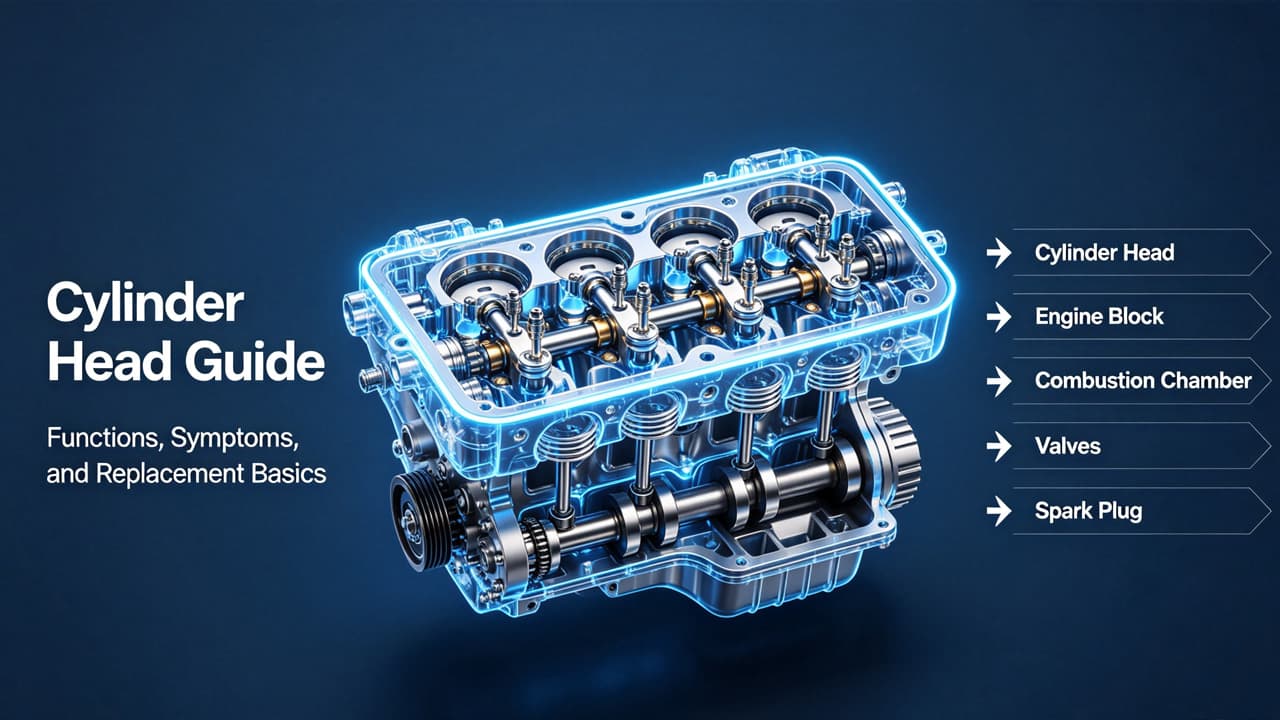

The cylinder head is a critical engine component that seals the combustion chambers. A compromised head can cause catastrophic engine failure, making it essential for owners and DIY mechanics to understand its function, recognize failure symptoms, and know realistic replacement costs to make informed, cost-effective repair decisions.
1. What Exactly Does a Cylinder Head Do?
A cylinder head is far more than just a metal cap; it is the control center of your engine's combustion process. Its primary function is to seal the top of the cylinders in the engine block, creating a closed space for combustion. It holds the intake and exhaust valves, which control the flow of air and fuel into the cylinder and the exit of exhaust gases. In gasoline engines, it also houses the spark plugs that ignite the fuel-air mixture. Essentially, the cylinder head is where the magic of combustion happens, making it fundamental to your engine's power and efficiency. For more detailed technical diagrams, you can refer to resources like Engine Basics.
Why Is Sealing So Critical?
The cylinder head must create an airtight and watertight seal against the engine block under extreme pressure and temperature. This seal is maintained by the cylinder head gasket, a component we'll discuss in detail later. If this seal fails, compression is lost, leading to poor performance, overheating, and potentially catastrophic engine damage. The precision engineering required for this seal is why aftermarket manufacturers like GPQ invest heavily in quality control to ensure our parts meet or exceed OEM specifications.
How Do Valves and Spark Plugs Work Together?
The cylinder head acts as a housing for the valvetrain and ignition system:
- Intake Valves: Open to allow the air-fuel mixture (or just air in direct injection engines) to enter the combustion chamber.
- Exhaust Valves: Open to release burnt gases after combustion.
- Spark Plugs: Provide the electrical spark needed to ignite the compressed mixture.
- Camshafts: Located in the head on OHC (Overhead Cam) engines, these rotate to open and close the valves at precise times.
Any wear or damage to these components within the head can lead to misfires, reduced fuel economy, and increased emissions. When sourcing replacement heads, ensuring that valve guides and seats are machined to exact tolerances is crucial for long-term reliability.
2. How Is a Cylinder Head Different from an Engine Block?
Think of your engine as a high-performance sandwich. The engine block is the bottom slice of bread—it's the massive, heavy foundation that contains the cylinders where the pistons move up and down. It's built to withstand immense mechanical force and heat. The cylinder head, on the other hand, is the top slice of bread. It bolts onto the block to seal the cylinders and manage the complex dance of air, fuel, and exhaust. While the block handles the brute mechanical force of the pistons, the head manages the precise airflow and combustion process. They are two distinct but inseparable partners in your vehicle's powertrain.
What Are the Key Differences Between the Two?
While they work together, the cylinder head and engine block have fundamentally different jobs and construction requirements. Understanding these differences is crucial for diagnosing issues correctly. For instance, if you're dealing with low compression, knowing whether the leak is at the piston rings (block side) or the valves (head side) can save you hours of unnecessary disassembly.
| Feature | Engine Block | Cylinder Head |
|---|---|---|
| Primary Function | Houses pistons/crankshaft; structural base | Seals cylinders; houses valvetrain & combustion chamber |
| Material | Cast iron or aluminum alloy | Aluminum alloy (mostly); cast iron (older/heavy-duty) |
| Complexity | Relatively simple structure | Highly complex with ports, jackets, and cam bores |
| Failure Mode | Cracks from freezing/overheating; worn bores | Warping; cracked between valves/seats; gasket failure |
| Repairability | Often requires machining or replacement | Can often be resurfaced, welded, or valve-jobbed |
GPQ Pro Tip: When replacing either component, always check the mating surface flatness. A warped block will ruin a brand-new head gasket instantly, no matter how good the head is. At GPQ, we recommend inspecting both surfaces before reassembly to ensure a perfect seal.
Why Does Material Matter?
Most modern passenger cars use aluminum heads on aluminum blocks to save weight and improve heat dissipation. However, many trucks and performance engines still use cast iron blocks for durability. Mixing materials (like an aluminum head on an iron block) requires specific gaskets and torque procedures to account for different expansion rates when the engine heats up. Ignoring this can lead to premature gasket failure—a common issue we see in DIY repairs.
3. What Causes a Cylinder Head to Go Bad?
Understanding why this critical component fails is the first step in prevention and accurate diagnosis. While cylinder heads are built from durable materials like cast iron or aluminum alloy, they operate under extreme conditions of heat and pressure. When what causes a cylinder head to go bad is ignored, it can lead to catastrophic engine failure. The most common culprit is engine overheating, but other factors play a significant role as well.
Why Is Overheating the #1 Enemy?
Overheating is the leading cause of cylinder head failure because metal expands when heated. If your engine runs too hot—due to a broken thermostat, a leaking radiator, or low coolant levels—the cylinder head can warp or even crack. Aluminum heads are particularly susceptible to this because aluminum has a lower melting point and different thermal expansion properties compared to cast iron blocks. Once warped, the head can no longer form a tight seal with the engine block, leading to compression leaks and fluid mixing.
Other Common Causes of Failure
- Poor Maintenance: Using the wrong type of coolant or failing to change it regularly can lead to corrosion inside the cooling passages of the head. Corrosion weakens the metal and can eventually cause cracks.
- Pre-ignition and Knocking: Also known as "engine knock," this occurs when fuel ignites prematurely in the cylinder. This creates violent pressure spikes that hammer against the piston and the cylinder head, potentially causing physical damage or cracking over time.
- Manufacturing Defects: Although rare, casting flaws or material weaknesses can exist from the factory. This is why choosing high-quality aftermarket parts from reputable brands like GPQ is crucial for long-term reliability.
- Improper Installation: If a previous repair was done incorrectly—such as unevenly torquing the head bolts or failing to clean the mating surface properly—it can create stress points that lead to premature failure.
Recognizing the Symptoms: A Diagnostic Table
Identifying the signs early can save you from a complete engine rebuild. Here is a breakdown of common symptoms associated with cylinder head issues:
| Symptom | Possible Cause | Severity Level |
|---|---|---|
| White Smoke from Exhaust | Coolant leaking into the combustion chamber and burning off. | High |
| Milky Oil (Mayonnaise-like substance) | Coolant mixing with engine oil due to a breach in the seal. | High |
| Engine Overheating | Warped head preventing proper coolant flow or sealing. | High |
| Loss of Power | Compression leak caused by a poor seal between head and block. | Medium |
| Rough Idle or Misfire | Air/fuel mixture issues or valve problems stemming from head damage. | Medium |
4. Is a Cylinder Head Gasket Failure the Same as a Bad Head?
This is one of the most common misconceptions in engine repair. The short answer is: no, they are not the same, but they are inextricably linked. Understanding the distinction between a failed gasket and a damaged head is critical for accurate diagnosis and cost-effective repairs. The cylinder head gasket function is to act as a multi-layered barrier that creates a perfect seal between the cylinder head and the engine block. It prevents high-pressure combustion gases, coolant, and engine oil from mixing or leaking. When this seal is compromised, the symptoms often mimic a "bad head," leading many car owners to assume the worst. However, the root cause determines the repair path and the final bill.
Why the Confusion Exists
The confusion arises because a warped or cracked cylinder head will almost always cause the head gasket to fail. The gasket is designed to seal against flat, stable surfaces. If the head warps due to overheating, the gasket can no longer maintain its seal, leading to leaks. In this scenario, simply replacing the gasket without addressing the warped head will result in immediate re-failure. Conversely, a head gasket can fail on its own due to age, material fatigue, or improper installation (such as incorrect torque sequencing), even if the head itself is perfectly flat and undamaged. This is why a thorough inspection is non-negotiable before any repair begins.
Diagnosing the Root Cause
At GPQ, we recommend a systematic approach to determine whether you’re dealing with a gasket issue or a head issue:
- Visual Inspection: Remove the head and inspect the gasket for burn-through, tears, or compression leaks. A failed gasket will show clear signs of breach.
- Flatness Check: Use a precision straightedge and feeler gauges to measure the head’s surface flatness. Most manufacturers specify a maximum allowable warp (often 0.002–0.004 inches). If the head exceeds this tolerance, it must be machined or replaced.
- Pressure Testing: A cooling system pressure test can reveal leaks that aren’t visible during a visual inspection, helping to pinpoint whether the leak is at the gasket or within the head itself.
- Crack Detection: For suspected cracks, especially between valve seats or in coolant passages, a dye penetrant test or pressure testing of the head can reveal hidden damage that a straightedge won’t catch.
The Cost Implications
The financial difference between replacing a gasket and replacing a head is substantial. A head gasket replacement typically costs between $500 and $1,500, depending on labor rates and vehicle complexity. If the head is warped but repairable, machining it adds $100–$300 to the cost. However, if the head is cracked or severely warped beyond repair, a full replacement can cost $1,500 to $3,500 or more. This is why accurate diagnosis saves money: replacing a gasket on a warped head is a wasted expense, while replacing a head for a simple gasket failure is an unnecessary overspend.
GPQ’s Quality Assurance for Gaskets and Heads
As a specialized aftermarket supplier for the U.S. consumer market, GPQ understands that the quality of your replacement parts directly impacts the success of your repair. Our cylinder head gaskets are engineered with multi-layer steel (MLS) construction and high-temperature elastomer coatings to withstand the extreme pressures and thermal cycles of modern engines. They are designed to meet or exceed OEM specifications, ensuring a reliable seal even under demanding conditions. For heads, we offer both new and remanufactured options that undergo rigorous flatness and pressure testing before shipping. This commitment to quality means you can trust that our parts will perform as intended, reducing the risk of comebacks and ensuring long-term engine health.
Explore our range of high-quality cylinder head gaskets and precision-engineered cylinder heads for your vehicle. Whether you’re performing a DIY repair or sourcing parts for your shop, GPQ provides the reliability and value you need to get the job done right the first time.
5. How Much Does Cylinder Head Replacement Cost?
Understanding the cylinder head replacement cost is essential for budgeting your repair and avoiding unexpected expenses. The final price tag can vary significantly based on your vehicle’s make and model, local labor rates, and whether you need a simple gasket replacement or a full head assembly swap. On average, replacing a cylinder head gasket ranges from $500 to $1,500. However, if the head itself is warped and requires machining or complete replacement, the cost can easily jump to $2,000–$3,500 or more. Labor typically accounts for 60–70% of the total bill, as removing and reinstalling a head is a time-intensive process that requires specialized tools and expertise. Always get a proper diagnosis before committing to a repair to ensure you’re paying for the right solution. For official service bulletins that might affect cost or repair procedures, consult the National Highway Traffic Safety Administration (NHTSA) website.
Breaking Down the Cost Components
To make an informed decision, it’s helpful to understand what drives the price of a cylinder head repair. The cost isn’t just about the part itself; it’s a combination of labor, materials, and additional services. Parts for a gasket-only repair typically range from $50 to $200, with multi-layer steel (MLS) gaskets being the standard for modern engines. If a new head is required, prices generally fall between $300 and $800, depending on the material and engine complexity, while remanufactured heads offer a cost-effective alternative at $200 to $500. Machining or resurfacing a warped head adds $100 to $300, and labor costs can range from $800 to $2,500 based on the engine layout and shop rates. Additionally, you should budget $50 to $150 for necessary fluids and seals, such as coolant, oil, and head bolts.
GPQ Pro Tip: Always factor in the cost of new head bolts if your engine uses torque-to-yield (TTY) fasteners. Reusing old TTY bolts can lead to improper clamping force and gasket failure, turning a $1,000 repair into a $3,000 nightmare. At GPQ, we include TTY bolts in our premium gasket kits to ensure a perfect seal every time.
New vs. Remanufactured vs. Used: Which Is Right for You?
When the head itself needs replacement, you have three main options, each with distinct cost and reliability implications. A new OEM or aftermarket head is the most reliable option, offering a fresh, unblemished component with a full warranty. While the upfront cost is higher, it eliminates the risk of hidden defects. GPQ’s new heads are engineered to meet or exceed OEM specifications, providing peace of mind for long-term use. A remanufactured head serves as a cost-effective middle ground. These heads are disassembled, cleaned, inspected, and rebuilt with new valves, seals, and guides. They’re tested for flatness and pressure leaks before shipping. For budget-conscious repairs, a remanufactured head from a reputable supplier like GPQ can save you hundreds without sacrificing quality. A used head is the cheapest option but also the riskiest. Used heads may have hidden cracks, warpage, or worn valve seats that aren’t visible during a cursory inspection. They’re best suited for temporary fixes or low-mileage vehicles where long-term reliability isn’t a priority.
Hidden Costs to Watch For
Beyond the obvious parts and labor, several hidden costs can inflate your repair bill. A proper diagnosis may require a cooling system pressure test, compression test, or dye penetrant inspection, which typically cost $100–$200 but can save you from misdiagnosing the issue. When the head is removed, the cooling system and oil must be drained and refilled, so be sure to use high-quality fluids to prevent future corrosion or contamination. As mentioned earlier, TTY bolts are one-time-use fasteners, and reusing them can lead to catastrophic failure, so always replace them with new, high-strength bolts. If your head is warped, it must be resurfaced to restore flatness, which adds $100–$300 to the cost but is essential for a proper seal.
6.Should You Buy a Head Bolt Kit With or Without Screws?
This is a great question that gets to the heart of smart purchasing. Many modern engines use Torque-to-Yield (TTY) head bolts, which stretch during installation and cannot be reused. For these engines, you must buy a kit that includes new bolts. For older engines with standard bolts, you might be able to reuse them if they are in good condition. However, buying a complete kit with new bolts is often the safer, more reliable choice to ensure a perfect seal and avoid future headaches. Check out our complete cylinder head bolt kits to find the right one for your engine.
7. FAQ
Q:Can I drive my car with a bad cylinder head?
A:It is highly discouraged to operate a vehicle with a compromised cylinder head. Continuing to drive under these conditions can precipitate catastrophic engine damage, such as seized pistons or a cracked engine block. This escalation transforms what might have been a manageable, albeit costly, repair into the far more expensive necessity of a complete engine replacement.
Q:How long does a cylinder head last?
A:When subjected to proper maintenance and free from overheating incidents, a cylinder head is engineered to endure for the entire operational lifetime of the engine. Its longevity is inextricably linked to the consistent and effective maintenance of the engine's cooling system, which prevents the thermal stresses that lead to warping or cracking.
Q:Can I replace a cylinder head myself?
A:Although replacement is technically feasible for experienced DIY mechanics, it is an inherently complex procedure that demands specialized equipment, such as a precision torque wrench, and strict adherence to exacting installation protocols. Any deviation from these precise procedures can result in immediate component failure. Consequently, if you lack absolute confidence in your technical proficiency, entrusting this critical repair to a professional mechanic is the safest and most prudent course of action.
Q: How much does it cost to repair or replace a cylinder head?
A: Repair costs vary significantly based on the extent of damage and vehicle model. A minor repair, such as resurfacing a warped head or replacing a head gasket, typically ranges from $200 to $800. However, a full cylinder head replacement—including parts, machining, and labor—can cost between $1,500 and $3,000 or more. If the head is severely cracked or the engine block is damaged due to prolonged driving with a bad head, a complete engine replacement may be necessary, pushing costs well beyond $4,000. Early diagnosis and repair are crucial to avoiding these escalated expenses.
Q: How can I tell if the issue is a bad head gasket or a damaged cylinder head?
A: While symptoms like coolant loss, white exhaust smoke, and overheating overlap, key differences can help distinguish the two. A blown head gasket often causes external coolant or oil leaks, rapid coolant loss without visible damage, and may be detected via a block test (checking for combustion gases in the coolant). A damaged cylinder head, however, may show internal coolant leaks (coolant mixing with oil inside the head), visible cracks or warping upon inspection, and persistent overheating even after gasket replacement. A compression test, leak-down test, or professional visual inspection is essential to accurately diagnose the root cause and avoid unnecessary repairs.
Ready to fix your engine? Browse our full selection of cylinder heads and related parts on our official website today and get your vehicle running smoothly again!
8. Key Takeaways
- As one of the most core and precision components of an internal combustion engine, the cylinder head plays an irreplaceable role in maintaining stable engine operation. It tightly seals the top of the engine block, forming a closed combustion chamber to ensure accurate compression ratios and stable power output. Meanwhile, it serves as the mounting base for key engine accessories, including intake and exhaust valves, spark plugs, fuel injectors, and valve springs. In addition, the cylinder head is integrated with intricate coolant and oil passages, which undertake the critical tasks of engine heat dissipation and lubricant circulation, directly affecting the engine’s fuel efficiency, power performance, and service life.
-
Many amateur DIY mechanics and daily drivers in the US often confuse the cylinder head with the engine block, yet distinguishing their functions is the core of accurate engine fault diagnosis. The engine block is the main body of the engine, housing pistons, crankshafts and other moving parts to complete mechanical operation; while the cylinder head focuses on sealing, air intake and exhaust, ignition and heat management. Once the cylinder head or its matching parts fail, the engine will show obvious abnormal symptoms, which must be detected and repaired in time to avoid secondary damage and costly engine overhaul. - There are several typical warning signs of a faulty or damaged cylinder head and blown head gasket that every car owner should recognize. First, frequent engine overheating is the most common symptom. Blocked or leaking coolant passages in the cylinder head will hinder heat dissipation, causing the engine temperature to rise rapidly even with sufficient coolant, which is easy to trigger high-temperature alarm during daily driving or highway cruising. Second, thick white smoke continuously emitting from the exhaust pipe is a classic failure signal, which is caused by coolant leaking into the combustion chamber and burning with fuel. Different from the temporary water vapor white smoke in cold weather, this kind of smoke will persist and be accompanied by a sweet syrup-like odor.
- Third, the mixing of engine oil and coolant is a serious hidden danger of cylinder head seal failure. Drivers can observe milky, frothy residue on the oil dipstick or in the coolant tank, which means the sealing system is damaged. This mixture will completely destroy the lubricating performance of engine oil, aggravate internal engine wear, and even lead to bearing damage and engine stalling in severe cases. In addition, faulty cylinder head components will also cause rough idling, engine misfires, reduced power output and increased fuel consumption, greatly affecting driving experience and vehicle safety.
- When facing cylinder head seal failures, most American car owners will choose to replace the cylinder head gasket first, which is also the most cost-effective maintenance solution. Compared with replacing the entire cylinder head assembly with high manufacturing and assembly costs, a professional head gasket replacement can perfectly solve most sealing leakage problems, greatly reducing vehicle maintenance costs while achieving reliable repair results. For daily family cars, pickup trucks and SUVs, targeted gasket replacement is the preferred economical repair plan recognized by the aftermarket auto repair industry.
